GEARMOTORS FOR ALL POOL COVER SYSTEMS
By a leading European manufacturer
Wide choice
The widest range on the market
Reliability
State-of-the-art technology
Convenience
Easy installation, set-up and support
Customisable
To fully meet your specifications
MOVING FLOOR
High torque in continuous gearmotor
TUBULAR IP68
PL Series
Unipoolmotor
CUBIC SOLID SHAFT IP68
DL Series
UnipoolmotorThe best technical solution to cover a swimming pool, combining security, space saving, flexibility and design.
The motor must be capable of delivering high torque in continuous mode during moving floor operation.
Furthermore, effective waterproof protection during the motor’s whole lifespan is mandatory.
The movement is obtained through the usage of belt and pulley or screw jacks.
Mechanical designers have two options to conceive their product:
- PL Series, IP68 tubular motor (tube is rotating and shaft is fix)
- DL Series, cubic motor (motor is fix and shaft is rotating)
In both cases motors are IP68 waterproof and they are UL recognized components.
SLIDING DECK
Optimal layout and safety for your pool
TUBULAR DOUBLE SIDED IP55
UNIDeck Series
Unipoolmotor
CUBIC HOLLOW SHAFT IP68
DL Series
UnipoolmotorThe cover solution which, besides granting maximum security, also allows to enjoy the complete garden surface when the pool is closed.
In order to make automatic drive of the deck comfortable and aesthetic at the same time, a solar panel power feed is envisaged.
Two possibilities are available:
All components needed to implement the drive can be easily hosted underneath the deck itself thus providing a discrete arrangement which is effective and beautiful at the same time.
POOL ENCLOSURE
Self-powered guided pool enclosure
TUBULAR DOUBLE SIDED IP55
UNIDeck Series
UnipoolmotorOur solution for pool enclosures is based on a tubular motor with two output shafts. This drive, which is solar panel fed, can be easily integrated and hidden in the middle of the pool enclosure structure.
Moreover, this kind of patented drive solves the main problem for pool enclosures, which is torque sharing between wheels. In fact, an unbalanced effort could result in a damage on the pool enclosure guides.
Finally, in our double shafted tubular motor gearbox, output shafts are rigidly connected by construction thus avoiding any problem related to torque transmission.
AUTOMATIC POOL COVER
Safe, Electric and Durable Drive Systems

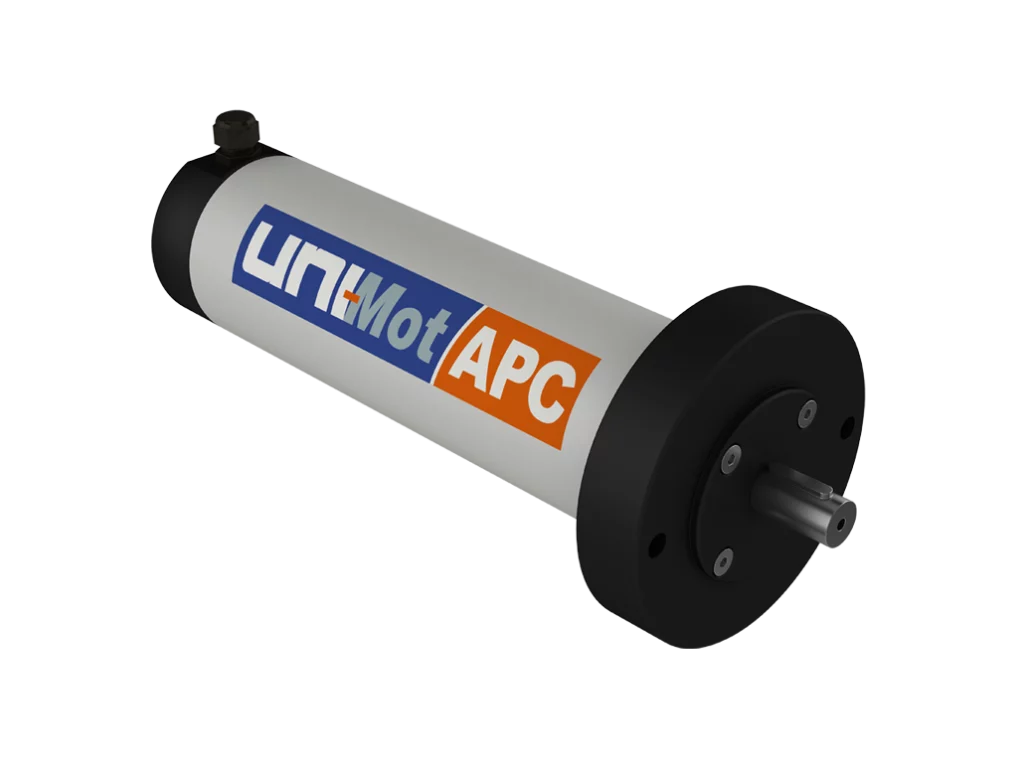

TUBULAR IP68
PL Series
UnipoolmotorCUBIC HOLLOW SHAFT IP68
DL Series
UnipoolmotorElectric drives are an effective alternative to traditional hydraulic drives to move safety covers.
In fact, our product range is based on brushed DC motor respecting security norms since current and tension are limited and very low.
Thanks to an efficient and modular planetary gearbox, high torque values can be reached without necessity of monophasic or triphasic motors.
Our product portfolio includes:
- PL series, tubular IP68 motor gearbox (tube is rotating and shaft is fix)
- DL series, hollow output shaft cubic gearbox (shaft rotating and motor is fix)
All products have been specially conceived with patented technical solutions aiming to increase their reliability in such a challenging environment as swimming pools.
The PL and DL series are marked as UL recognized components.
SLATTED POOL COVER
The electric alternative: More ecological
TUBULAR IP68
PL Series
UnipoolmotorCUBIC HOLLOW SHAFT IP68
DL Series
UnipoolmotorAs seen for safety covers, electric drives are also the main alternative to traditional hydraulic drives for slatted covers.
While in the past swimming pools where usually not equipped with electricity, nowadays a number of electric devices requiring wiring (lights, sensors, robot, etc.) are present.
In addition, low voltage current and tension is therefore available and can be used to drive slatted covers as well.
Finally, this approach is also more ecological and avoids all the hiccups possible with hydraulics (high pressure devices, oil leakages, maintenance costs, etc.)
Contact us for more information.
Our product portfolio includes:
- PL series, tubular IP68 motorgearbox (tube is rotating and shaft is fix)
- DL series, hollow output shaft cubic gearbox (shaft rotationg and motor is fix)
All products have been specially conceived with patented technical solutions aiming to increase their reliability in such a challenging environment as swimming pools.
PL series and DL series can be marked as UL Recognized component.
